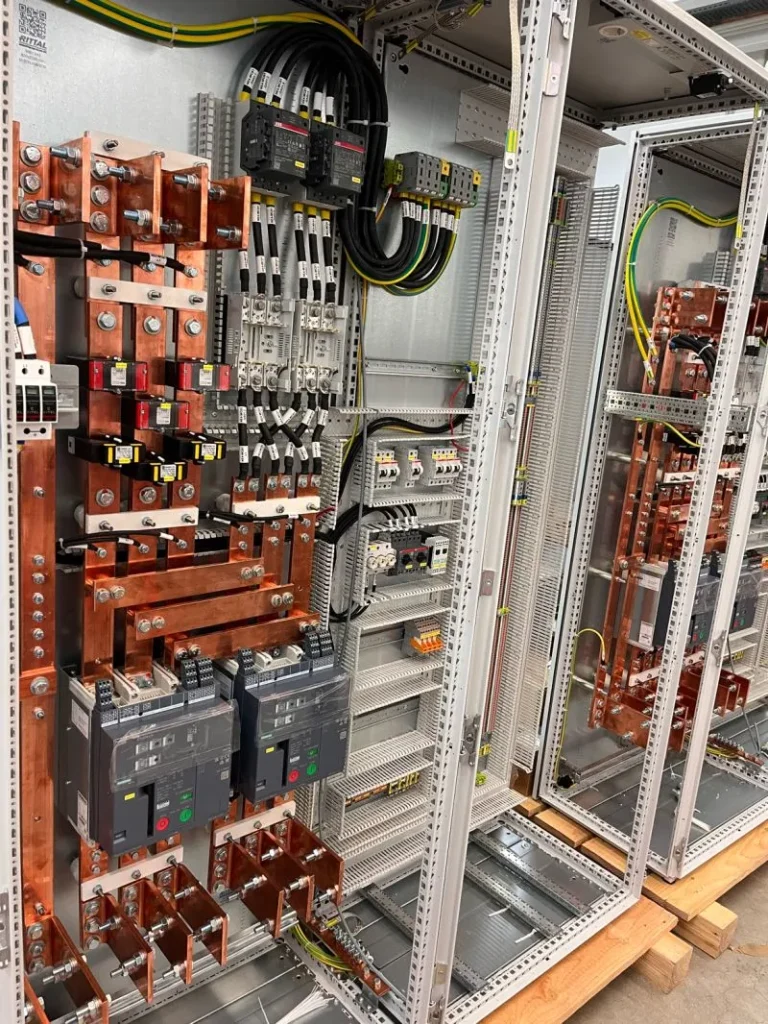

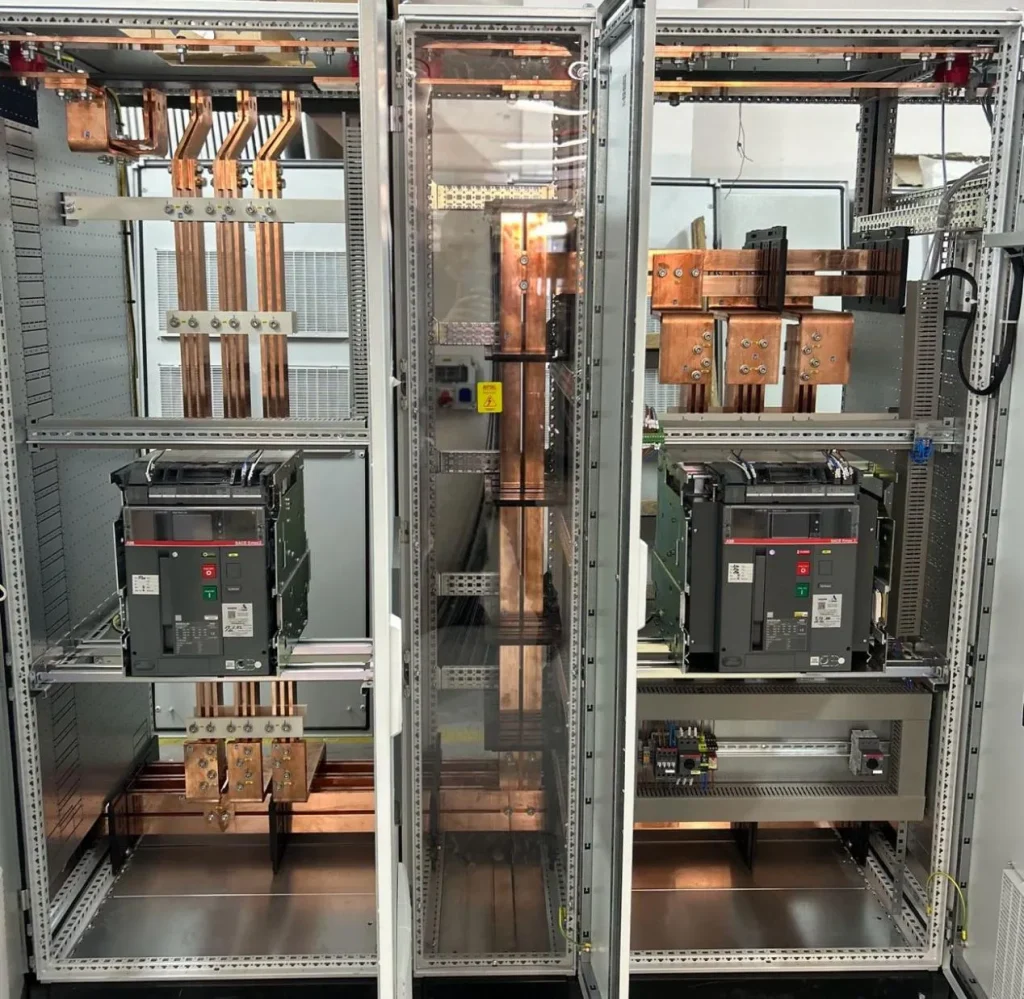

What is a Switchgear?

A switchgear is a core power distribution device in power systems, centrally integrating four key functions: power distribution, control, protection, and monitoring. It not only enables the safe distribution of power resources and flexible start-stop control of electrical equipment but also quickly cuts off and isolates faulty circuits when abnormal conditions such as overload or short circuit occur in the circuit. This fundamentally prevents equipment burnout and safety accidents, providing comprehensive protection for the continuous and stable operation of power systems.



In terms of specific cabinet types, it covers a variety of structural designs to meet the needs of different scenarios, such as low-voltage drawout-type switchgears (e.g., GCS, MNS series) and low-voltage partitioned switchgears (e.g., GCK-G, GDF series). All cabinet types strictly comply with the IEC 61439/GB/T 7251 standards and can meet the full range of isolation requirements for FORM 1 (basic non-isolation), FORM 2 (isolation between busbars and functional units), FORM 3 (mutual isolation between busbars, functional units, and cable terminals), and FORM 4 (full-area isolation including maintenance channels). They are suitable for different protection needs, from general commercial power distribution to high-safety industrial scenarios.

2. Core Advantages of Switchgear

1. Centralized Power Management: Suitable for power distribution needs in multiple scenarios such as industrial plants, commercial buildings, and data centers, significantly improving the overall reliability of power systems;
2. Multiple Fault Protection: Equipped with multiple circuit protection mechanisms, it can accurately respond to various electrical faults such as overload and short circuit, reducing equipment maintenance costs and production downtime losses;
3. Convenient Operation & Maintenance: Adopts a modular structure, facilitating daily operation and maintenance, greatly shortening fault detection time, and reducing the risk of production and operation interruption;
4. Full-Scenario Adaptability: Covers all high and low voltage levels, and can be customized according to customers’ actual power needs to adapt to power systems of different scales.

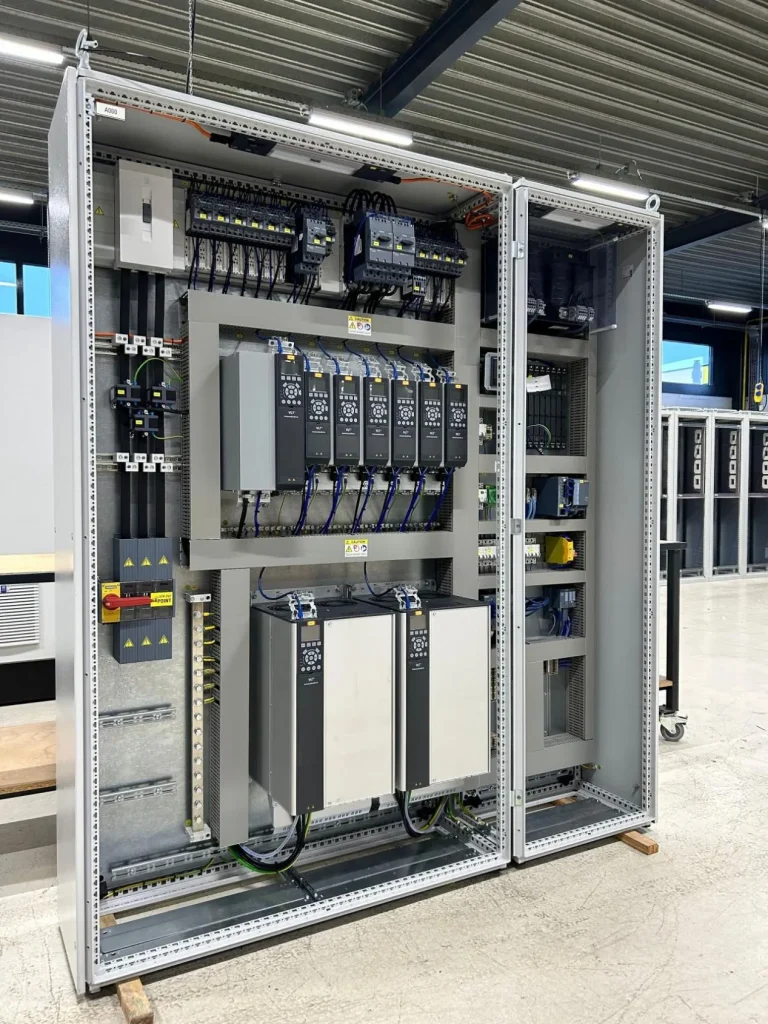

3. What is MCC Multi-Cabinet Parallel Connection?

MCC (Motor Control Center) Multi-Cabinet Parallel Connection is the “central control unit” of industrial motor systems, designed specifically for the centralized management of multiple motors. It integrates core electrical components such as circuit breakers, contactors, and overload protectors, enabling start-stop control, real-time operation monitoring, and fault protection of motors. It can efficiently manage the coordinated operation of multi-circuit motors and is widely applicable to multi-motor linkage scenarios such as production lines, pump stations, and fan groups.

4. Core Advantages of MCC Multi-Cabinet Parallel Connection

1. Simplified System Architecture: Centrally manages multiple motors, greatly simplifying on-site wiring and operation processes, and reducing the complexity of electrical systems and post-operation maintenance difficulty;
2. Accurate Motor Protection: Configures triple protection (overload, short circuit, and phase failure) according to the operating characteristics of motors, effectively preventing motors from being burned due to abnormal conditions and extending motor service life;
3. Predictive Maintenance: Can real-time monitor motor operating parameters (such as current and temperature), facilitating early warning of potential faults and realizing predictive maintenance of motor systems;
4. Flexible Expansion Capability: Adopts a modular unit design, supporting the addition of motor circuits according to capacity upgrade needs in the later stage to meet the long-term development plan of enterprises.

5. Why Can HUIER Electric Create High-Quality Products? (Enterprise Positioning)

HUIER Electric is a professional power distribution equipment manufacturer certified by TUV, with more than 10 years of experience in the design and manufacturing of switchgear and MCC control cabinets. The core technical team has profound capabilities in interpreting international standards and developing customized products. From raw material selection, full-process control of production technology to finished product factory inspection, every link strictly complies with international certification standards such as UL, CSA, AS/NZS 61439, and CE, ensuring that each product meets the safety specifications and quality requirements of mainstream global markets. Up to now, HUIER Electric has provided customized power distribution solutions to customers in more than 30 countries and regions around the world, and its products are widely used in core fields such as intelligent manufacturing, energy, construction, and transportation.
