What Is IEC 61439 and Why Does It Matter for My Control Cabinets?

My projects face safety risk, schedule risk, and audit risk. Bad panels create all three. IEC 61439 gives me one clear rulebook. I use it to build safe, reliable assemblies.

IEC 61439 is the global standard for low-voltage switchgear and controlgear assemblies. It defines roles, ratings, tests, and documentation so panels are safe, consistent, and easy to inspect.

I use plain language here. First, I explain what the standard covers. Next, I compare it to UL 508A because I sell to several markets. Then, I show my simple checklist to pass compliance the first time.

What does IEC 61439 cover?

I need one standard that sets duties for builders and for users. I also need clear tests and data. IEC 61439 gives me all of this in one series of parts.

IEC 61439 covers design, building, testing, and documentation for low-voltage switchgear and controlgear assemblies. It defines responsibilities, ratings, type tests, routine tests, and marking.

The parts I work with every week

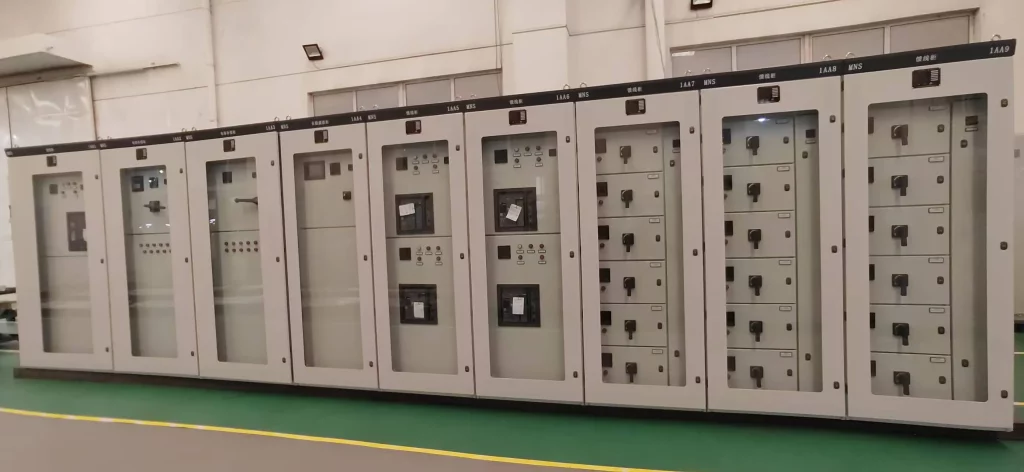

I treat IEC 61439 like a map. Part 1 gives general rules. Part 2 covers power switchgear and controlgear assemblies. Other parts cover specific assemblies like distribution boards, busbar trunking, and assemblies for construction sites or public networks. Most of my factory work sits in Part 1 and Part 2. When I build distribution boards, I use Part 3 as well.

The standard splits roles. The original manufacturer designs and verifies the assembly family. The assembly manufacturer adapts it for a customer order and performs routine tests. Sometimes I am both. Sometimes I license a verified design from a partner brand. Either way, I must keep a clear file that shows how the assembly meets the rules.

Verification is at the heart of the standard. I can verify by testing, by calculation, or by assessment, depending on the clause. I do not guess. I use official methods. I confirm temperature rise limits, dielectric withstand, short-circuit strength, protection degree (IP), clearances, creepage, mechanical operation, and electromagnetic compatibility. I also check the function of devices, interlocks, and doors.

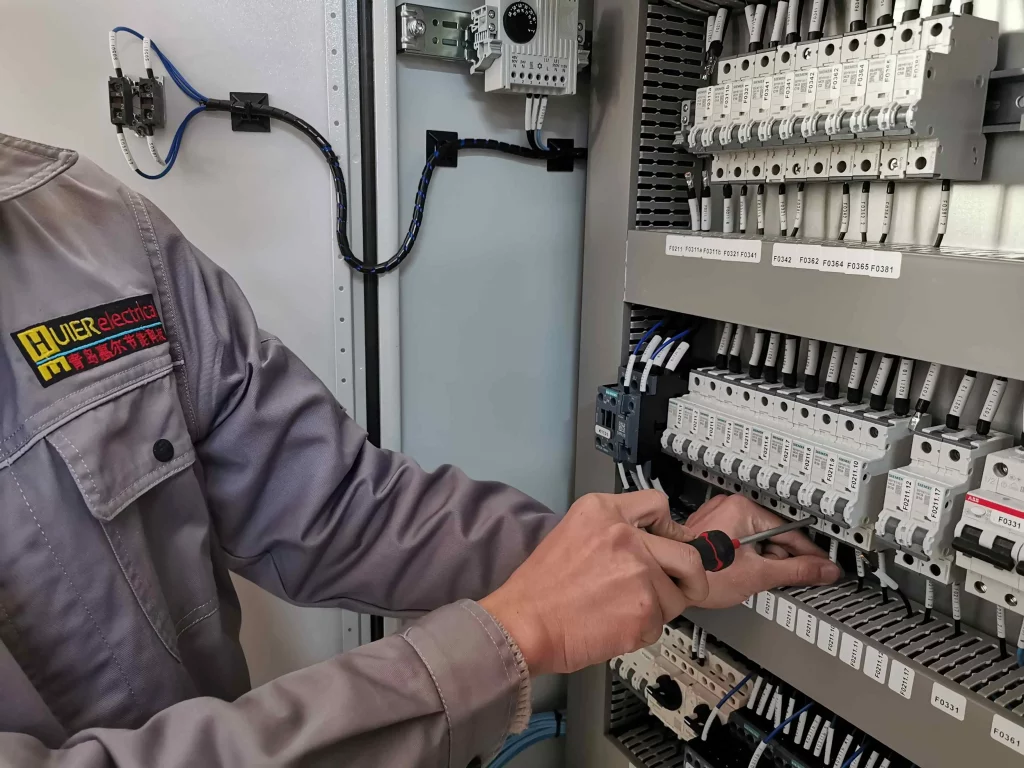

Routine tests happen on every unit before I ship. I check wiring and functional operation. I apply dielectric tests as the design needs. I confirm the degree of protection. I torque check connections. I mark every panel with ratings, the builder name, and warnings in the right language. I include a diagram and a parts list in the door pocket.

The standard also sets how I state ratings. I write the rated operational voltage (Ue), impulse withstand (Uimp), frequency, short-circuit rating (Icw or Icc), internal separation form, ingress protection (IP), and, when relevant, conditional short-circuit current (Icc) with upstream device data. This shared language avoids confusion and saves time on sites and audits.

IEC 61439 quick map

What is the difference between IEC 61439 and UL 508A?

I sell in several markets. I must speak more than one code language. IEC 61439 and UL 508A both guide safe panels, but they focus on different scopes and methods.

IEC 61439 is for low-voltage assemblies worldwide, with system-level verification. UL 508A is the U.S. standard for industrial control panels, with component-based rules and SCCR labeling.

IEC 61439 vs UL 508A at a glance

How do I ensure IEC 61439 compliance in my projects?

I want panels that pass the first time. I also want low downtime and simple service. I use a short checklist. It starts at RFQ and ends at FAT.

I define market and standard, choose a verified platform, lock ratings, plan heat and space, select certified parts, and run routine tests with records. I keep every item measurable and auditable.
