What Is an Electrical Cabinet? Functions, Daily Work, and How It Differs from a Control Panel

What is the meaning of electrical cabinet?

I often see confusion around this term. People mix it with panels. That creates risk and delays. I explain the meaning in simple words with real project notes.

An electrical cabinet is an enclosed structure that holds power and control devices. It protects people and equipment, keeps wiring organized, and enables safe operation, testing, and maintenance.

This topic looks basic, yet it touches safety, uptime, and compliance. I keep the language plain. I add checklists, examples, and small rules I use on site.

What is the function of control cabinet?

Many teams know the parts, not the purpose. That slows design and causes rework. A clear view of functions keeps projects on time and audits smooth.

A control cabinet distributes power, protects circuits, runs machines with PLCs and relays, monitors status, and keeps everything safe inside a rated enclosure with proper IP or NEMA protection.

Core functions in plain words

• Power distribution: Take incoming power and feed each load in a clean, measured way.
• Circuit protection: Detect faults and cut them fast to prevent damage and fire.
• Control and automation: Use PLCs, relays, drives, and contactors to run the process.
• Monitoring and diagnostics: Show current, voltage, speed, temperature, and alarms.
• Communication: Link to field devices and upper systems through Ethernet and buses.
• Functional safety: Stop motion safely with E-stops, safety relays, and interlocks.
• Thermal and environment: Keep the inside cool, dry, and clean with fans or AC.
• Serviceability: Give clear labels, drawings, and lockout points for safe work.

How the functions fit together in real work

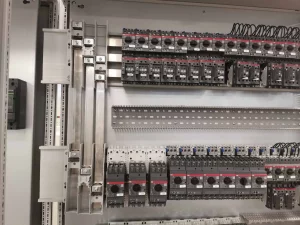

I treat the cabinet as the home for all electrical and automation gear. It feeds loads. It shields people from live parts. It blocks dust and water. It hosts PLCs, contactors, drives, terminals, and network gear. It gives technicians clear space to test and fix. Below is the map I use during design reviews and FAT.

Practical design rules that avoid hidden costs

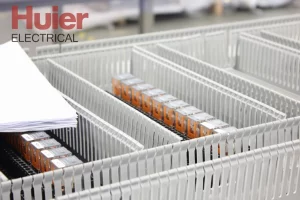

I size feeders for load plus margin. I place protection upstream and near high-risk points. I separate power and control ducts. I label every device and terminal. I pick IP or NEMA rating for the site, not the catalog. I leave heat space above drives and power supplies. I reserve DIN rail and terminal space for future I/O. In one tire plant, I changed only cable routing and bonding. EMI alarms fell to zero. Uptime rose. From the outside nothing changed. Inside order did. That is why layout matters more than fancy parts.

What is the work of electrical cabinet?

Many people think it “just sits there.” It does steady work each minute. It powers, senses, decides, and protects, every cycle, every shift.

An electrical cabinet receives power, conditions it, distributes it, and executes control logic. It logs data, raises alarms, and supports safe service through clear labels, lockout points, and clean documentation.

A simple daily loop

1. Power in. The main breaker takes supply and meters it. Surge devices clamp spikes.
2. Make control power. Supplies create clean 24 VDC and other rails.
3. Read the process. Sensors and switches send signals to the PLC.
4. Decide. The PLC runs logic and sets outputs.
5. Act. Contactors, valves, and drives move motors and actuators.
6. Check. Feedback confirms motion, pressure, level, or temperature.
7. Show. HMI or SCADA displays status, trends, and alarms.
8. Protect. Breakers, fuses, and safety relays stop faults fast.
9. Record. The system logs events for audits and root cause work.

Conclusion

A cabinet protects, powers, and controls the whole system. A panel organizes control parts. I choose the right form by load, site, growth, and service needs. I set the target standard first (UL 508A, EN/IEC 61439, CSA, AS/NZS). I size for fault level, heat, and space, not just today’s bill of materials. I plan lockout points, clear labels, and clean wiring so service is safe and fast. When these basics are right, uptime rises, audits are short, and teams stay safe. If I have doubt, I design for the harshest condition and keep margin. Simple rules, applied early, keep projects on time and within budget.
