Many plants struggle with scattered motor starters and messy panels. That slows fixes and raises risk. I explain MCC in plain words and show how I use it on real jobs.

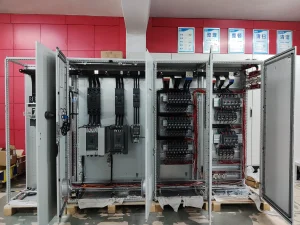

An MCC (Motor Control Center) is a centralized assembly that powers, controls, protects, and monitors many motors from one place. It uses modular units (“buckets”) to add, remove, and service feeders and drives safely and fast.
I keep the focus on outcomes. I cover use cases, real advantages, and why MCC matters to safety and uptime. I also share checks I run before I sign off.
Plants often add motors over time. Gear spreads across rooms. Labels drift. Faults take hours. A good MCC fixes that by bringing motor power and control into one lineup.
An MCC is used to start, stop, protect, and monitor motors for pumps, fans, conveyors, mixers, compressors, and more. It centralizes feeders, breakers, contactors, soft starters, VFDs, metering, and network gateways in a service-friendly lineup. I use MCCs to sequence starts, enforce interlocks, manage E-stops, and share data with PLC/DCS over Ethernet/IP, PROFINET, or Modbus. I also use them to trend current, detect jams, and schedule maintenance from real measurements, not guesswork. Withdrawable or plug-in buckets let me swap a unit fast while the rest stays live and safe. Spare buckets and bus capacity make growth simple.
Teams ask if an MCC is just “a row of boxes.” It is more. It is a system that lowers risk and speeds work. The gains show up in uptime, safety, and energy.
An MCC gives modularity, safety, speed, and space savings. It allows fast service with withdrawable units, clean wiring, coordinated protection, better cooling, and simple expansion. It also improves data, energy use, and audit readiness.
| Advantage | What it means | Why it matters |
|---|---|---|
| Modularity | Standard buckets for starters and VFDs | Fast changes and spares |
| Safety | Door-closed racking, shutters, interlocks | Lower arc-flash risk |
| Coordination | Breakers and overloads graded | Fewer nuisance trips |
| Space efficiency | Vertical sections share bus | Smaller rooms, lower cost |
| Cooling | Designed airflow and segregation | Longer device life |
| Data and comms | Meters, gateways, diagnostics | Faster root cause work |
| Expansion | Spare space and bus capacity | Low-cost growth |
| Serviceability | Clear labels and access | Shorter outages |
An MCC may cost more than separate wall starters on day one. It costs less over life. Fewer hours to troubleshoot. Less floor space. Less heat. Fewer surprises during audits. Lower injury risk. Better power factor and speed control bring energy down. A one-hour swap instead of a one-day rebuild pays back fast in plants that run 24/7.
People see motors as small pieces. In truth, motors run the plant. When motors stop, the business stops. The MCC sits at the center of that truth.
MCCs are important because they protect people, keep motors running, and make service safe and fast. They reduce downtime, lower energy use, support compliance, and give a clear path for future growth.
I use MCC features that keep doors closed while I rack or test. I choose shutters and barriers that cover live bus. I add voltage indicators. I place clear arc-flash labels and coordination charts. I build to the target market standard. I keep test reports in the job file. When safety is built in, people work with less fear and more care.
A chilled-water plant had scattered starters and four brands of drives. Every trip was a hunt. We replaced them with a single MCC. We set coordination, added metering, and moved to door-closed racking. Unplanned stops fell 70% in the first quarter. The crew now finds the cause in minutes, not hours. The MCC did not only “tidy the room.” It changed the way the team works.
An MCC centralizes motor power and control. It boosts safety, uptime, and growth. I design for standards, space, cooling, and clear labels so service stays fast and safe.
